The DESOI w.i.l.m.a. can be upgraded to the PRO version. The PRO version contains an additional termination criterion and electronic pressure control.
Abort criterion: Pressure holding time
The set pressure is kept constant for a specified time to ensure optimum filling of all cracks and cavities. This is recorded and traceable in the injection log.
Electronic pressure control
When the electronic pressure control is activated, it is ensured that the set pressure is not exceeded (short-term pressure deviations may occur due to machine shutdown).
moving device, 1.5 m suction system Ø 19 mm with suction basket Ø 40 mm: 2 x manometer 0 - 250 bar, material hose connection: component A: external thread G1/2", component B: external thread G3/8", return hoses Ø 13 mm: transparent, air connection set: claw coupling 42 mm, air plug NW7.2; DESOI w.i.l.m.a.: control cabinet with integrated control, 10 m supply cable, on/off switch, control lamp, 2 x flow sensors, pressure sensor, Rugged Tablet PC 10.1" IP67 with Software for w.i.l.m.a. and protective foil, incl. instruction manual > A professional briefing is mandatory. > This is free of charge via video conference. > On-site instruction is also possible by arrangement and at a charge. > Arrival and departure are charged at cost. > A tariff must be selected for the w.i.l.m.a. data management system.
Número de artículo:
14304
PU:
1 piece
Entra.
Los datos de acceso introducidos no son correctos. Por favor, inténtelo de nuevo.
convertirse en un cliente
¿Aún no tienes acceso a Internet? Solicite sus datos de acceso aquí.
Fixed mixing ratio 1 : 1 - continuously electronically monitored
You can find more information on the application and process techniques with the DESOI w.i.l.m.a. in the STUVA ABI leaflet "Sealing of structures by injection", 4th edition - Part III/1.3.2 from p. 57.
Material de entrada
2C polyurethane
Datos técnicos
Working pressure - infinitely variable
10 - 100 bar
Delivery rate
max. 7.6 l/min
Air consumption
1 m³/min
Transmission ratio
1:13
Mixing ratio
1:1
Air pressure
max. 8 bar
Air consumption and delivery rate at 100 bar back pressure (injection pressure)
Air consumption 75 l/min
Delivery rate 0,5 l/min
Air consumption 133 l/min
Delivery rate 1 l/min
Air consumption 283 l/min
Delivery rate 2 l/min
Air consumption 391 l/min
Delivery rate 3 l/min
Weight
60 kg
L x W x H
70 x 57 x 112 cm
Control cabinet
Supply voltage (adjustable ex works)
110 - 230 V/0,5 Ampere
Storage type
digitally on tablet
Data transfer
WLAN
Measuring range - volume (depending on the sensor)
100 l/min.
Measuring range - pressure (depending on the sensor)
max. 250 bar*
Measurement accuracy
± 2 % v ME
Weight
8.62 kg
L x W x H
30 x 19 x 33 cm
*1 bar = 105 Pa. (Pascal)
Tablet
Storage type
digitally on tablet
Hard disk space
64 GB
Data transfer
WLAN
Weight - tablet
1 kg
L x W x H - tablet
28 x 20 x 3 cm
Descripción del producto

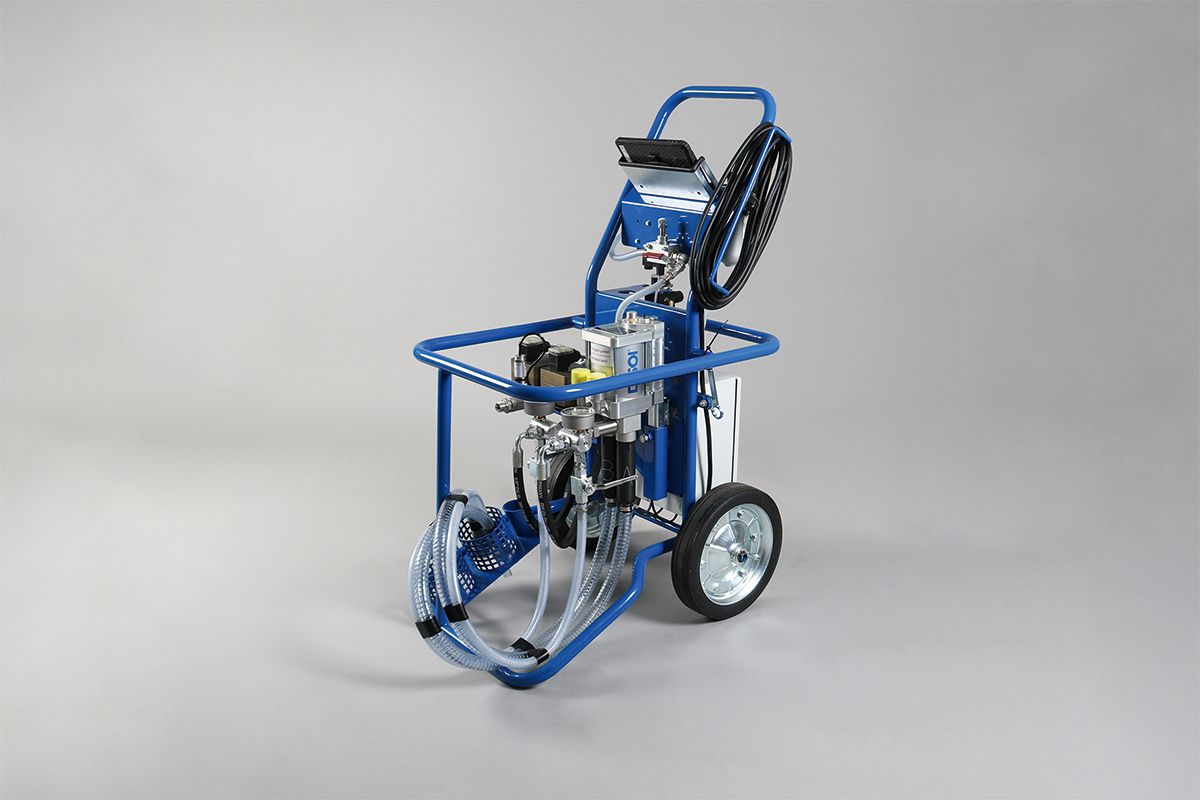

The pneumatic reciprocating pump DESOI AirPower S25-2C combines high capacity with compact design. Due to the directly mounted seals on the piston, retensioning is not necessary. The result is a very maintenance-friendly machine. DESOI w.i.l.m.a. monitors and documents the material consumption, the injection pressure and the mixing ratio.
