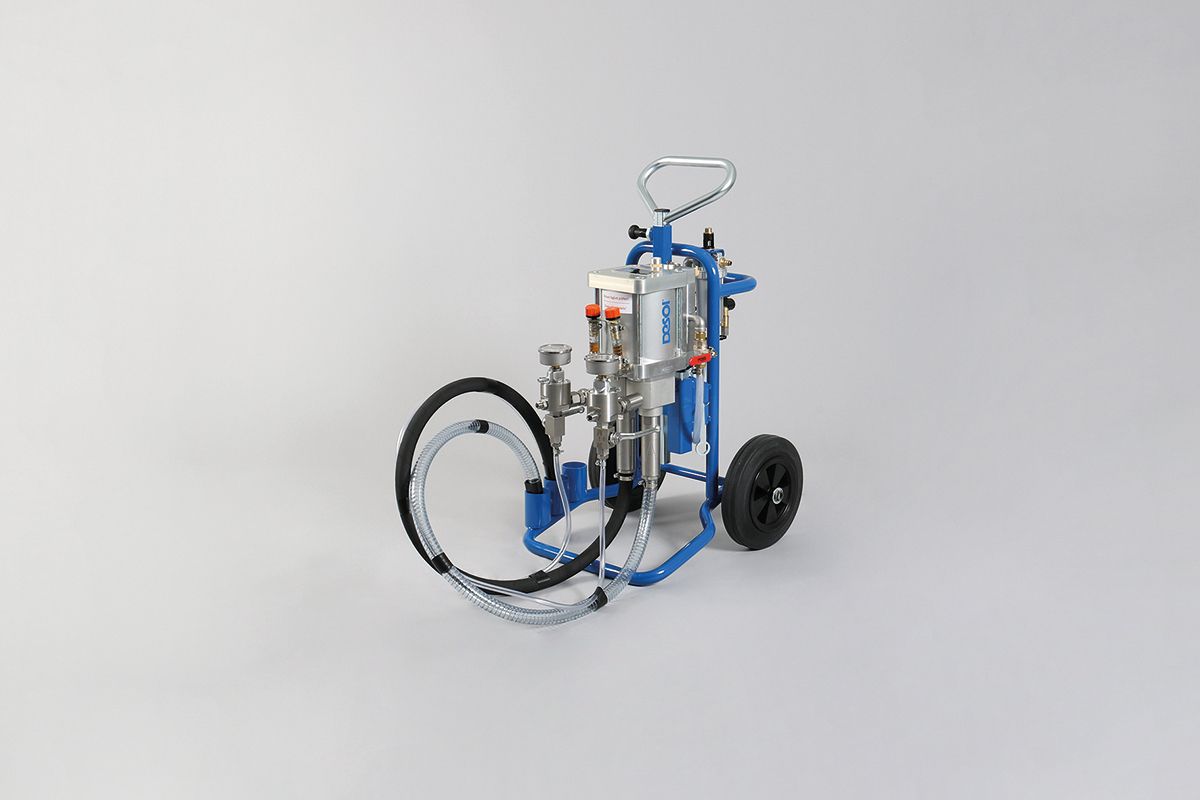

DESOI AirPower M25-2C VA

moving device, 1.5 m suction system Ø 20 mm with suction basket Ø 40 mm: component A: transparent, component B: black, 2 x manometer 0 - 250 bar, material hose connection: component A: external thread M16x1.5; component B: external thread M14x1.5; return hoses Ø 8 mm: transparent, air connection: air plug NW 7.2; incl. instruction manual
Ventaja/Nota
  • All material contacting parts of stainless steel

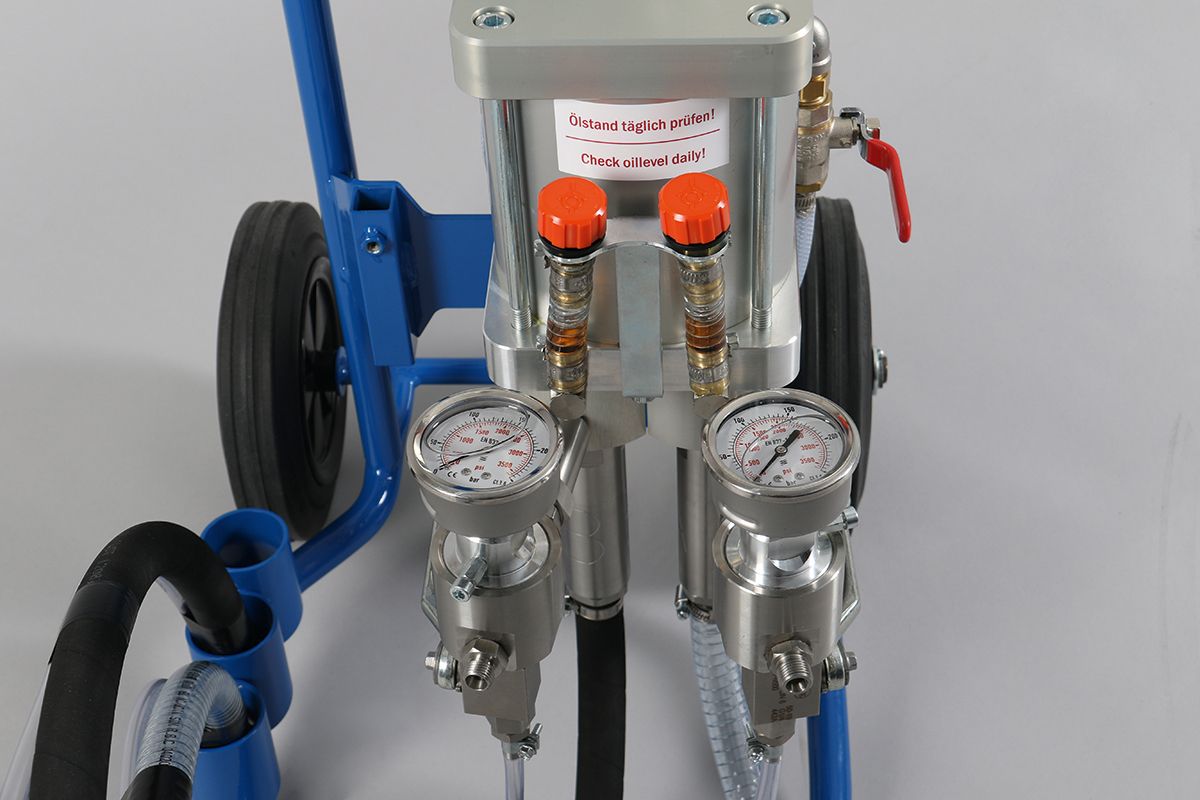

  • Pressure gauge units with manometers at machine outlet for pressure control of each component
Material de entrada
  • acrylate gel
Datos técnicos
Working pressure - infinitely variable 15 - 220 bar
Delivery rate
- at compressor output of 0.7 m³/min (2 x compressor DESOI R400) max. 8 l/min
- at compressor output of 1.5 m³/min max. 10 l/min
Air consumption 1 m³/min
Mixing ratio 1 : 1
Air pressure max. 8 bar
Weight 40 kg
L x W x H 65 x 50 x 85 cm
Descripción del producto
The reciprocating pump DESOI AirPower M25-2C is equipped with a forced mixing control. The material is delivered at a fixed mixing ratio of 1:1. The big and exactly operating valves provide both high flow rate and high mixing accuracy. The pump is very easy to maintain and low wearing. Due to its low weight, the pump can be used flexibly on the construction site.
